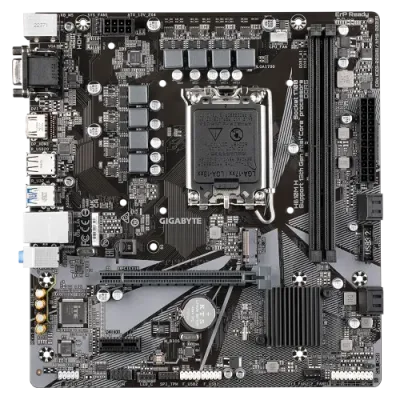

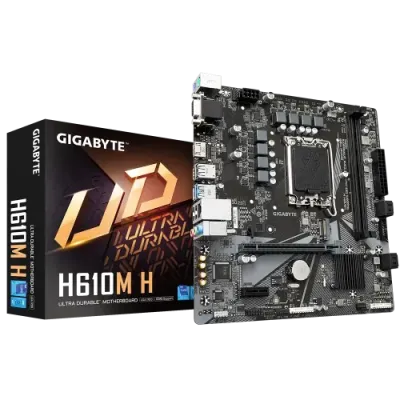

GIGABYTE H610M H DDR5 mATX Motherboard

GIGABYTE H610M H DDR5 mATX Motherboard
GIGABYTE H610M H DDR5 mATX Motherboard
GIGABYTE H610M H DDR5 mATX Motherboard
-9 %
GIGABYTE H610M H DDR5 mATX Motherboard
GIGABYTE H610M H DDR5 mATX Motherboard
GIGABYTE H610M H DDR5 mATX Motherboard
GIGABYTE H610M H DDR5 mATX Motherboard
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: H610M H
  • SKU: 00588
  • MPN: H610M H
10,800৳
11,850৳
Ex Tax: 10,800৳
🚚 ডেলিভারি চার্জ ও অর্ডার পলিসি:
📍 ঢাকার ভিতরে: ডেলিভারি চার্জ মাত্র ৬০ টাকা 📍 ঢাকার বাইরে: ডেলিভারি চার্জ ১৩০ টাকা ⚠️ পণ্যের সাইজ ও ওজন অনুযায়ী ডেলিভারি চার্জ পরিবর্তন হতে পারে 💳 ঢাকার বাইরে অর্ডার কনফার্মেশন: ঢাকার বাইরে অর্ডার কনফার্ম করার জন্য (01717226895) Bkash / Nagad এ ১৩০ টাকা অ্যাডভান্স পেমেন্ট বাধ্যতামূলক ✔️ অ্যাডভান্স পেমেন্ট করার পরই অর্ডার কনফার্ম করা হবে 📦 নির্ভরযোগ্য ও নিরাপদ ডেলিভারি নিশ্চিত করা হয় 📩 অর্ডার করতে ইনবক্স করুন এখনই!

Specification

Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel H610 Express Chipset
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Connectivity

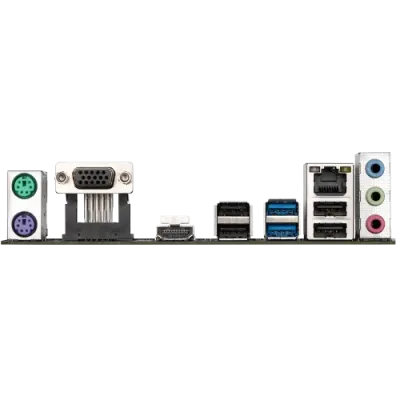

Audio Jack 1 x front panel audio header 2 x audio jacks
D-Sub 1x D-Sub port
HDMI 1x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
LAN Port Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Expansion Slots
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
Graphics Type Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.)
Memory Specifications
Maximum Memory up to 64 GB (32 GB single DIMM capacity) of system memory
Slots 2
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type DDR5
Other Features
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Special Feature Support for APP Center Support for Q-Flash Support for Xpress Install
Warranty Information
Warranty 3 Years Warranty

Description

GIGABYTE H610M H DDR5 mATX Motherboard

The GIGABYTE H610M H DDR5 mATX Motherboard is a high-performance motherboard that supports 14th, 13th, and 12th generation Intel processors via the LGA1700 socket. Because it is compatible with Intel Core 14th, 13th, and 12th generation CPUs, it provides a powerful and responsive computer experience. The motherboard supports DDR5 memory with dual-channel non-ECC unbuffered DDR5 slots, with a maximum capacity of 64GB that can be overclocked to 4800MHz. It has 1x HDMI and 1x D-Sub connection for graphics output, accommodating multiple display configurations. A 6+1+1 Hybrid Digital VRM Design for reliable power delivery, PCIe 4.0 Design for better data transfer rates, and Gen3 x4 M.2 for high-speed data transmission with support for NVMe PCIe 3.0 x4 M.2 SSDs are among the advanced features. An Anti-Sulfur Resistor is included to increase longevity, while Smart Fan 6 includes numerous temperature sensors and hybrid fan headers with FAN STOP for effective cooling. For an immersive audio experience, the motherboard also has GbE LAN with Bandwidth Management, high-quality audio capacitors, and Audio Noise Guard. The GIGABYTE APP Center provides a user-friendly interface for quick system customization and control. The GIGABYTE H610M H DDR5 mATX Motherboard provides a dependable and high-performance platform perfect for gamers, content makers, and enthusiasts, with added features such as Anti-Sulfur Resistors Design for better endurance.



What is the price of GIGABYTE H610M H Motherboard in Bangladesh?

The latest price of GIGABYTE H610M H Motherboard in Bangladesh is 10,800৳. You can buy the GIGABYTE H610M H Motherboard at best price from our website or visit any of our showrooms.
