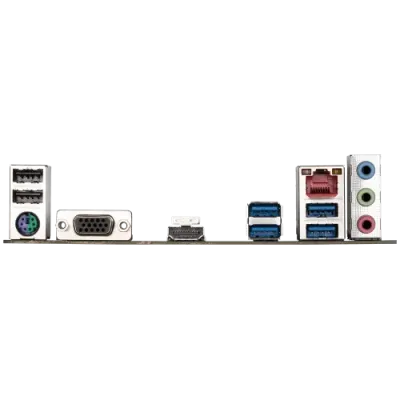

Name: GIGABYTE B760M D2H DDR4 mATX Motherboard
Brand: Gigabyte
SKU: 00592
Price: 14500.00 BDT
Availability: InStock

GIGABYTE B760M D2H DDR4 mATX Motherboard

-8 %

GIGABYTE B760M D2H DDR4 mATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B760M D2H DDR4
SKU: 00592
MPN: B760M D2H DDR4

Based on 0 reviews. - Write a review

14,500৳

15,800৳

Ex Tax: 14,500৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

More from this brand

Quickview

Gigabyte 256GB NVMe M.2 SSD

4,700৳ 5,000৳

Ex Tax:4,700৳

Add to Cart Add to Wish List Compare this Product

Quickview

GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

10,099৳ 11,720৳

Ex Tax:10,099৳

Add to Cart Add to Wish List Compare this Product

Quickview

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard

9,600৳ 10,900৳

Ex Tax:9,600৳

Add to Cart Add to Wish List Compare this Product

Quickview

GIGABYTE A620M H AM5 Micro-ATX Motherboard

10,800৳ 12,500৳

Ex Tax:10,800৳

Add to Cart Add to Wish List Compare this Product

🚚 ডেলিভারি চার্জ ও অর্ডার পলিসি:

📍 ঢাকার ভিতরে: ডেলিভারি চার্জ মাত্র ৬০ টাকা 📍 ঢাকার বাইরে: ডেলিভারি চার্জ ১৩০ টাকা ⚠️ পণ্যের সাইজ ও ওজন অনুযায়ী ডেলিভারি চার্জ পরিবর্তন হতে পারে 💳 ঢাকার বাইরে অর্ডার কনফার্মেশন: ঢাকার বাইরে অর্ডার কনফার্ম করার জন্য (01717226895) Bkash / Nagad এ ১৩০ টাকা অ্যাডভান্স পেমেন্ট বাধ্যতামূলক ✔️ অ্যাডভান্স পেমেন্ট করার পরই অর্ডার কনফার্ম করা হবে 📦 নির্ভরযোগ্য ও নিরাপদ ডেলিভারি নিশ্চিত করা হয় 📩 অর্ডার করতে ইনবক্স করুন এখনই!

Specification

Basic Information
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Connectivity
Audio Jack	1 x front panel audio header 3 x audio jacks
Display Port	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB	6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
Expansion Slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Graphics
Graphics Type	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Memory Specifications
Maximum Memory	64GB
Slots	2
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Other Features
Special Feature	2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Warranty	3 Years Warranty

Description

GIGABYTE B760M D2H DDR4 mATX Motherboard

The GIGABYTE B760M D2H DDR4 motherboard is intended for usage with Intel CPUs from the 14th 13th and 12th generations, and it supports the LGA 1700 socket. It boasts an unrivaled performance thanks to its hybrid 6+2+1 phase digital VRM system. This 14th Gen Motherboard also includes twin-channel DDR4 memory support, two XMP memory module slots, and two PCIe 4.0 x4 M.2 connections for next-generation storage. The PCIe 4.0 x16 slot has an EZ-Latch quick-release design, and the 2.5GbE LAN ensures speedy networks. HDMI and D-Sub ports provide additional connecting choices. The Smart Fan 6 has several temperature sensors and hybrid fan headers with fan stops, and the BIOS may be readily upgraded using the Q-Flash Plus function without having to install the CPU, RAM, or graphics card.

What is the price of GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh is 14,500৳. You can buy the GIGABYTE B760M D2H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.

Review

Tags: GIGABYTE B760M D2H DDR5 , Gigabyte b760m d2h ddr4 matx motherboard review , Gigabyte b760m d2h ddr4 matx motherboard price , GIGABYTE B760M D2H DDR5 price in bd , Gigabyte B760M D2H review , GIGABYTE B760M DS3H AX mATX Motherboard , B760m d2h ddr4 price , Gigabyte b760m d2h reddit.
