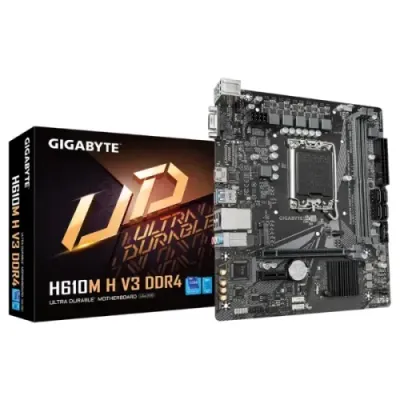

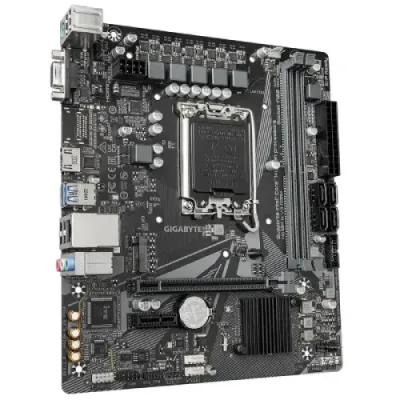

GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
-2 %
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: H610M H V3 DDR4
  • SKU: 00586
  • MPN: H610M H V3 DDR4
11,000৳
11,200৳
Ex Tax: 11,000৳
🚚 ডেলিভারি চার্জ ও অর্ডার পলিসি:
📍 ঢাকার ভিতরে: ডেলিভারি চার্জ মাত্র ৬০ টাকা 📍 ঢাকার বাইরে: ডেলিভারি চার্জ ১৩০ টাকা ⚠️ পণ্যের সাইজ ও ওজন অনুযায়ী ডেলিভারি চার্জ পরিবর্তন হতে পারে 💳 ঢাকার বাইরে অর্ডার কনফার্মেশন: ঢাকার বাইরে অর্ডার কনফার্ম করার জন্য (01717226895) Bkash / Nagad এ ১৩০ টাকা অ্যাডভান্স পেমেন্ট বাধ্যতামূলক ✔️ অ্যাডভান্স পেমেন্ট করার পরই অর্ডার কনফার্ম করা হবে 📦 নির্ভরযোগ্য ও নিরাপদ ডেলিভারি নিশ্চিত করা হয় 📩 অর্ডার করতে ইনবক্স করুন এখনই!

Specification

Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel H610 Express Chipset
Form Factor Micro ATX Form Factor; 22.3cm x 19.3cm
Supported CPU LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Connectivity
Audio Jack 3 x audio jacks
D-Sub 1 x D-Sub port
HDMI 1 x HDMI 2.1 port

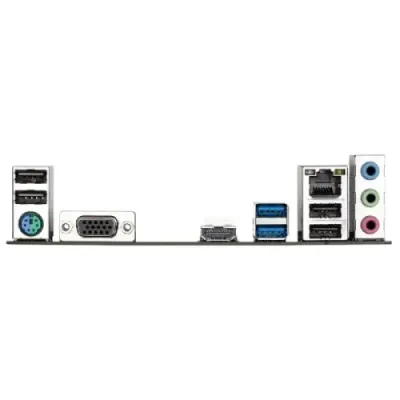

Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported Storage Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
USB Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Expansion Slots
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
Graphics Type Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.
Memory Specifications
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
Slots 2 x DDR DIMM sockets
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type DDR4
Other Features
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Special Feature Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Warranty Information
Warranty 3 Years Warranty

Description

GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

The GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard is designed to deliver exceptional performance and reliability for a wide range of computing needs. It supports 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors with its LGA1700 socket, ensuring compatibility with the latest CPUs. The motherboard features a robust 4+1+1 Hybrid Digital VRM design, providing stable power delivery to the CPU. It supports dual-channel non-ECC unbuffered DDR4 memory with two DIMM slots, allowing for up to 64GB of RAM, which is ideal for multitasking and demanding applications. The inclusion of a PCIe 4.0 x16 slot enhances graphics performance, while the PCIe 3.0 x4 M.2 slot supports high-speed NVMe SSDs for faster storage solutions. Connectivity options include Realtek GbE LAN for reliable internet connections and multiple display outputs such as HDMI, DVI-D, and D-Sub ports. The motherboard also boasts high-quality audio capacitors and an audio noise guard for an immersive sound experience. Designed for durability, it incorporates anti-sulfur resistors and solid capacitors to improve longevity and performance. The Smart Fan 6 technology ensures efficient cooling, keeping the system running smoothly under heavy loads. Whether you are building a new PC or upgrading an existing one, the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard offers a perfect blend of performance, reliability, and advanced features to meet your computing needs.




What is the price of GIGABYTE H610M H V3 DDR4 Motherboard in Bangladesh?

The latest price of GIGABYTE H610M H V3 DDR4 Motherboard in Bangladesh is 10,000৳. You can buy the GIGABYTE H610M H V3 DDR4 Motherboard at best price from our website or visit any of our showrooms.
